Aerospace Products

Amphenol systems attachments and interconnect solutions power very light jets, business or regional jets as well as large Commmercial Aircraft.

Communication Products

Amphenol Commercial Products division (ACP) is a world leader in providing interconnect solutions into a wide range of markets and applications, covering traditional connectors through to the latest and next generation technical products.

Industrial Products

Amphenol Canada core competencies include application specific industrial interconnect solutions utilizing integrated assemmblies, high-power interconnects requiring a high degree of engineering and system integration as well as a broad range of standard products.

Medical Products

With the broadest product lines and the most advanced technologies, Amphenol Medical Solutions offers designers the freedom to transform what's possible.

Military Products

Amphenol systems attachments and interconnect solutions power fighter aircraft and other military equipments.

Server/Storage Products

With our design creativity, simulation, testing capability, and cost effectiveness, Amphenol leads the way in interconnect development for internet equipment, infrastructure, enterprise networks, and appliances.

Our RJE58 series is a true, stand-alone Cat5e connector to meets the demands for faster connection speeds.

More Information

RJE58 – Standard Profile Cat5e RJ45

CAT5e standard profile through-hole (THT) is available in single port RJ45 configurations with full shield for superior EMI protection. A variety of LED options for link activity and network verification are also available. Made with high temperat ure composite and coupled with our high temperature resistant LEDs, these connectors are well-suited for the IR reflow solder processes. Inverted latch orientation for easier mating with industry standard plugs.

Integrated High Speed Contacts
Low cost high speed contact for PC Tail versions.
Resistance to ground is reduced.
Scoop Proof design.
Available in Quadrax and Twinax Differential Contacts.

More Information

Integrated High Speed Contacts

Low cost high speed contact for PC Tail versions.

Resistance to ground is reduced.

Scoop Proof design.
Available in Quadrax and Twinax Differential Contacts.

Please contact Amphenol Canada for more information

The connector system is designed to provide a standard D-sub interface for enclosures exposed to harsh environments.

More Information

MDBR - Rugged D-sub Connector

This Product Specification defines the general use and performance parameters for Amphenol’s MDBR series of Rugged D-sub connectors. Availability: 9 position standard density pin and socket connectors, 15 and 26 position high density pin and socket c onnectors available. Termination options include vertical PCB tails and solder cups suitable for up to 20 AWG for the 9 position connectors or 22 AWG for the 15 or 26 position. The connector system is designed to provide a standard D-sub interface for enclosures exposed to harsh environments. Protection is provided for IP68 applications per IEC 60529 specification. Protection is provided inthe mated or unmated condition. A sturdy die cast shell provides excellent strength and durability in the most demanding applications while a high temperature resistant plastic housing captures high quality gold plated screw machined copper alloy contacts.

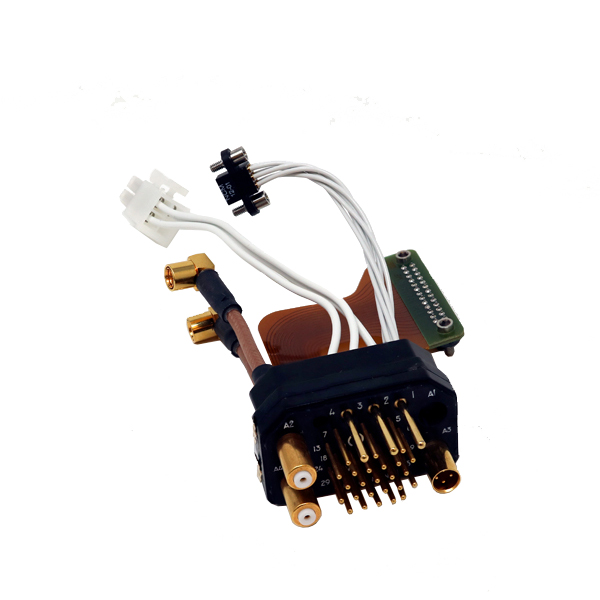

Circular Filter assemblies
Customized filter connectors with added features.
Example shows a filter circular with cable assembly to PCB header.
Shows value added capability from a standard product.

More Information

Circular Filter assemblies

Customized filter connectors with added features.

Example shows a filter circular with cable assembly to PCB header.

Shows value added capability from a standard product.

Please contact Amphenol Canada for more information

This Product Specification defines the general use and performance parameters for Amphenol’s MHDR connector
Availability: Right angle PCB tail version is presently available

More Information

MHDR Rugged HDMI

This Product Specification defines the general use and performance parameters for Amphenol’s MHDR connector. These connectors provide a High Definition Multimedia Interface for transmitting digital audiovisual signals.Receptacles will mate with any s tandard type A HDMI plug.Availability: Right angle PCB tail version is presently available. A vertical PCB tail version along with protective dust covers are planned.

Integrated Plate Assembly
Guarantees Sealing from box to Connector
There is no EMC issues due to a path around connector mounting

More Information

Integrated Plate Assembly

Guarantees Sealing from box to Connector.

There is no EMC issues due to a path around connector mounting.

Allows for better alignment from Connector to internal PCB.

Available in all connector formats

Please contact Amphenol Canada for more information

Fiber Optic Contacts in ACC Connectors
Ability to add ARINC 801, M29504 or expanded beam contacts to any connector
Can mix and match with other contact types ( ie Quadrax, Coax, Filter pins, etc)

More Information

Fiber Optic Contacts in ACC Connectors

Ability to add ARINC 801, M29504 or expanded beam contacts to any connector.

Can mix and match with other contact types ( ie Quadrax, Coax, Filter pins, etc).

Used in both commercial avionics and military applications.



Please contact Amphenol Canada for more information

The connector system is designed to provide a standard RJ45 interface, ideal for harsh environments where Ethernet/IP protocol is used.

More Information

MRJR - Rugged RJ45 Connector

This Product Specification defines the general use and performance parameters for Amphenol’s MRJR series of connector. Availability: Right angle PCB tail termination with 8 or 10 positions, LED options, EMI ferriteThis Product Specification defines t he general use and performance parameters for Amphenol’s MRJR series of connector. Availability: Right angle PCB tail termination with 8 or 10 positions, LED options, EMI ferriteA clear rubber boot for use with standard plugs is also available. The connector system is designed to provide a standard RJ45 interface, ideal for harsh environments where Ethernet/IP protocol is used. Protection is provided for IP68applications per IEC 60529 specification. Data rates conform to 10BaseT or 100BaseT Ethernet.

Amphenol’s CoolPower DWR Slim Drawer Connectors are perfect for use in applications requiring a low profile, blind mate interconnect with mixed power and signal contacts, up to 60A contact.

More Information

DWR - Slim Drawer Connectors

Amphenol’s CoolPower DWR Slim Drawer Connectors are perfect for use in applications requiring a low profile, blind mate interconnect with mixed power and signal contacts, up to 60A contact. They also have versatile mounting and termination styles, us ed for drawer and module applications. Amphenol CoolPower Slim Drawer connectors are available with combinations of up to 8 power and 40 signal contacts in various standard configurations. The CoolBand socket contact provides up to 60A current handling with low T-Rise. With a low-profile 10.8mm dimension off the PCB, Slim Drawer connectors ensure optimal air flow and high performance in restricted height applications such as 1U drawer modules. The offset integrated guide pins provide self-alignment gatherability of up to 1.5mm in all directions, and ensure correct mating orientation is maintained. Slim Drawer connectors are available in vertical and right angle configurations, PCB mount or wire termination, with float mount capability, allowing many applications including board to board (mezzanine, card extender and right angle), panel to panel or board to panel, and wire to board or wire to panel. Additional optional features such as metal guide posts for enhanced gatherability, Make-First, Break-Last contacts for hot plug capability, choice of contact plating (gold, silver) and modular tooling for easy creation of new configurations, make this one of the most versatile mixed power and signal interconnects available for demanding, high reliability applications.

Docking Connector
Low Profile Docking connector.
M55116 contacts for durability and self cleaning.
Filtered and unfiltered option available.
Target: Radio Manufacturers.

More Information

Docking Connector

Low Profile Docking connector.

M55116 contacts for durability and self cleaning.

Filtered and unfiltered option available.

Target: Radio Manufacturers.

Please contact Amphenol Canada for more information

Our RJE48 series is a true, stand-alone Cat5e connector to meets the demands for faster connection speeds.

More Information

RJE48 – Low Profile Cat5e RJ45

CAT5e low profile through-hole (THT) is available in single port and 4 port RJ45 configurations with full shield for superior EMI protection. A variety of LED options for link activity and network verification are also available. Made with high tem perature composite and coupled with our high temperature resistant LEDs, these connectors are well-suited for the IR reflow solder processes. Inverted latch orientation for easier mating with industry standard plugs.

The connector system is designed to provide a standard USB interface for enclosures exposed to harsh

More Information

MUSBR - Rugged USB

This Product Specification defines the general use and performance parameters for Amphenol’s MUSBR series of connectors. Availability: Series A right angle connectors are available now. Vertical PCB mount connectors will be available Q3, 2012. Mini-B and series Mini-AB with right angle and vertical PCB tails are coming soon. Right angle connectors mounted on a PCB with matching USB, cable headers or terminal blocks are available for all series. Dust covers for enhanced mating area protection are also available. The connector system is designed to provide a standard USB interface for enclosures exposed to harsh environments. Connectors mate with any standard USB 2.0 plug. Achieves data rates up to 480 Mb/s (USB 2.0).

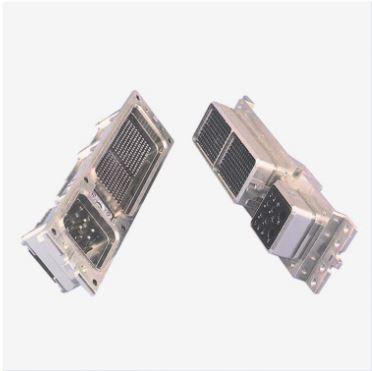

Integrated High Speed ARINC 600
Integrated High Speed contacts in ARINC 600
Reverse gender design for PC tailtermination
Low cost version with various mixed lines capabilities

More Information

Integrated High Speed ARINC 600

Integrated High Speed contacts in ARINC 600.

Reverse gender design for PC tailtermination.

Low cost version with various mixed lines capabilities.

Also can add filtering to non high speed lines.



Please contact Amphenol Canada for more information

Amphenol’s CoolPower® DWR Mezzanine Power connectors combine robust, high performance reliability with cost effective features critical in today’s increasingly demanding power applications..

More Information

DWR - Mezzanine Connector

Amphenol’s 2 pin CoolPower® DWR Mezzanine Connectors provide 60A of power per contact between parallel mezzanine boards and multiple mated height options provide compatibility with the Amphenol InfinX® high speed connector series. DWR Mezzanine conne ctors feature integrated self-aligning blind-mate capability and several contact termination/mounting styles. Amphenol’s CoolPower® DWR Mezzanine Power connectors are compatible with the Amphenol InfinX® high speed signal connector family, with available mated heights from 19.5mm to 42mm. With the same integrated blind-mate features used in the Slim Drawer product family providing 1.5mm of gatherability in all directions, Amphenol’s Mezzanine Power connector can eliminate or reduce the need for additional guidance hardware. Multiple contact termination styles including PCB solder tails, press-fit and screw terminations to suit any manufacturing assembly method. Radsok® contacts support applications requiring up to 60A of current per pin and ensure that the Mezzanine Power series provides one of the highest current densities and smallest board footprints available. For high current interconnect between parallel circuit boards, choose Amphenol’s DWR Mezzanine power connectors with Radsok® contacts for highly reliable performance in demanding applications.

Vertical THT connector with optional LEDs.

More Information

RJE88 – Vertical RJ45 with LEDs

Vertical through-hole (THT) in single port RJ45 configurations with full shield or superior EMI protection. A variety of LED options for link activity and network verification are available. Made with high temperature composite and when accompanied with our high temperature resistant LEDs, these connectors are well suited for the IR Reflow process.
